Key Considerations for Cutting S355K2G2W Weathering Steel Plates

Cutting S355K2G2W isn't difficult. But cutting it right takes a little know-how. Unlike ordinary structural steel, this grade relies on its chemistry to form that protective patina over time. Mess up the cut edge, and you might create a weak spot where corrosion takes hold early.

Plasma cutting. Fast and efficient. But plasma generates intense localized heat. On thicker plates (say, over 15mm), the cut edge develops a thin hardened layer. That's usually fine—but if you're welding that edge later, grind back about 2–3mm to remove any surface hardness or micro-cracks. No need to overdo it; just a light pass.

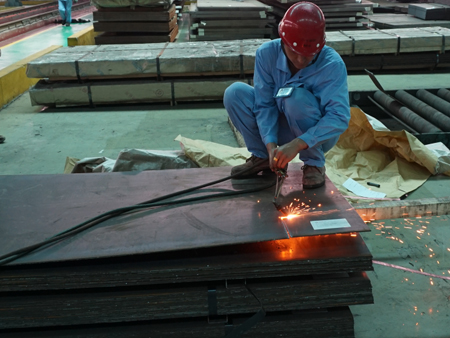

Oxy-fuel cutting. Still very common for weathering steels. The preheat flame and oxygen jet create a clean cut with a slightly rougher edge than plasma. The key here: avoid excessive preheat. Too much heat input can widen the heat-affected zone and potentially alter the microstructure. Use the lowest preheat that gives you a stable cut.

Laser cutting. Best for thinner plates (under 12mm). Produces narrow kerf and minimal heat input. The heat-affected zone is tiny—often under 0.5mm. For precision parts like architectural panels or small brackets, laser is hard to beat.

Shearing. Only for thin plates (under 6mm) and straight cuts. No heat at all, so no metallurgical changes. But shearing leaves a slightly work-hardened edge. That won't hurt corrosion performance, but deburr sharp corners to avoid injury during handling.

After cutting: Remove loose scale and slag from the cut edge. Don't grind aggressively—the patina needs that slightly rough surface to form properly. And never apply paint or sealant to fresh cut edges unless the design specifically calls for it. Let the steel breathe.
