S355J0W corten steel plate, S355J0W Yield, S355J0W Tensile

S355J0W corten steel plate, S355J0W Yield, S355J0W Tensile

S355J0W corten steel plate under EN 10155 standard which is a kind of hot rolled products with improved atmospheric corrosion resistance.

Steel Name: S355J0W corten steel plate, S355J0W steel plate, S355J0W steel sheet, S355J0W atmospheric corrosion resistance steel, S355J0W Structure plate

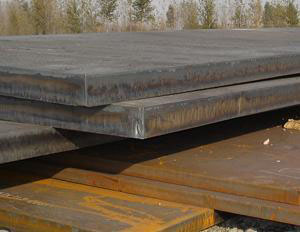

S355J0W corten steel plate

S355J0W corten steel plate specification:
Steel Grade: S355J0W   Steel Standard: EN 10025-5
Thickness:2mm-450mm, Width:1000mm-4200mm, Length:3000mm-18000mm

S355J0W chemical analysis:


Grade

C

Si

Mn

P

S

Cu

Cr

Ni

max

max

max

max

max.

max

max

max

S355 JOW

0.13

0.4

0.20-1.66

0.035

0.03

0.25-0.55

0.40-0.80

0.65

S355J0W mechanical property:

S355J0W

Thickness(mm)

S355J0W  Yield  Min (Mpa)

S355J0W Tensile (MPa)

Elongation (%)

Min Impact Energy

S355J0W

≤16mm

Min 355Mpa

470-630Mpa

22

0

27J

16-40mm

Min 345Mpa

470-630Mpa

22

0

27J

The min impact energy is longitudinal energy

S355J0W corten steel surface treatment: Shot blasting and painting or coated.

S355J0W corten steel plate application:
S355J0W corten steel plate is used for shipping containers,steel bridges,vessels and tanks for preventing atmospheric corrosion usage.

S355J0W tests: Tension test, Impact test, Ultrasonic Examination, etc.

S355J0W impact test: S355J0 plate adopt 0 temperature impact test with 27J.
